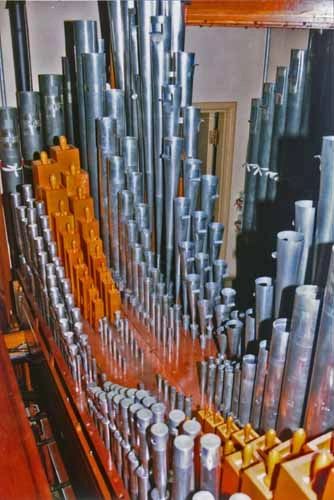

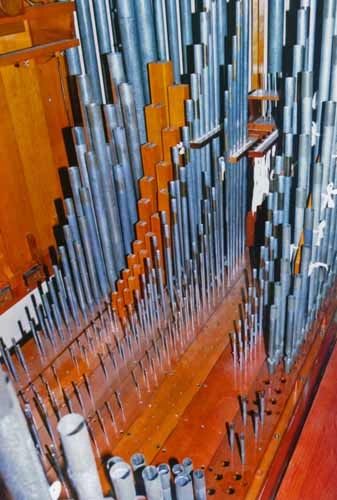

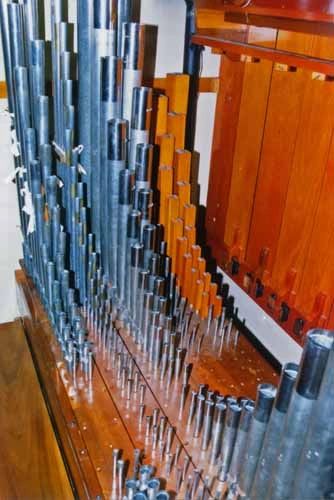

The Main Chamber

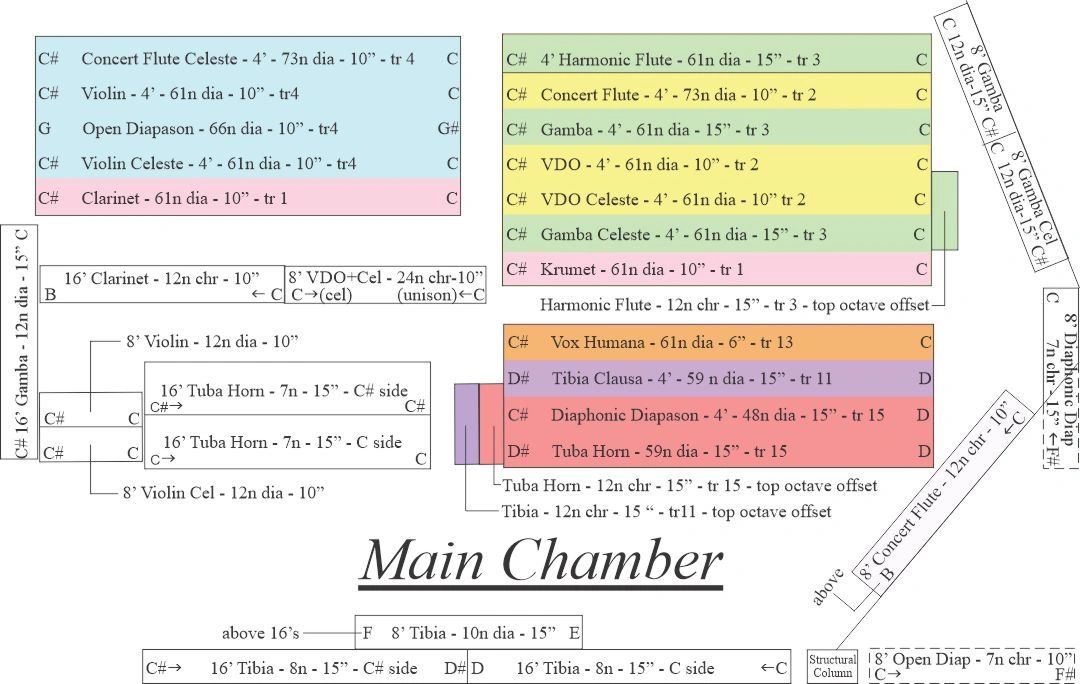

 Main Chamber - Chest 1 - Ranks from the front of the chamber to the rear of the chamber (right to left)

  1. Concert Flute Celeste
  2. Violin
  3. Open Diapason
  4. Violin Celeste
  5. Clarinet


Main Chamber - Chest 2 - Ranks from the front of the chamber to the  rear of the chamber (left to right)

  1. Harmonic Flute
  2. Concert Flute
  3. Gamba
  4. VDO
  5. VDO Celeste
  6. Gamba Celeste
  7. Krumet


Main Chamber - Chest 3 - Ranks from the front of the chamber to the rear of the chamber (left to right)

  1. Vox Humana
  2. Tibia Clausa
  3. Diaphonic Diapason
  4. Tuba Horn


The colors indicate the trems. All ranks with the same color are on the same trem. No color indicates not tremmed.
